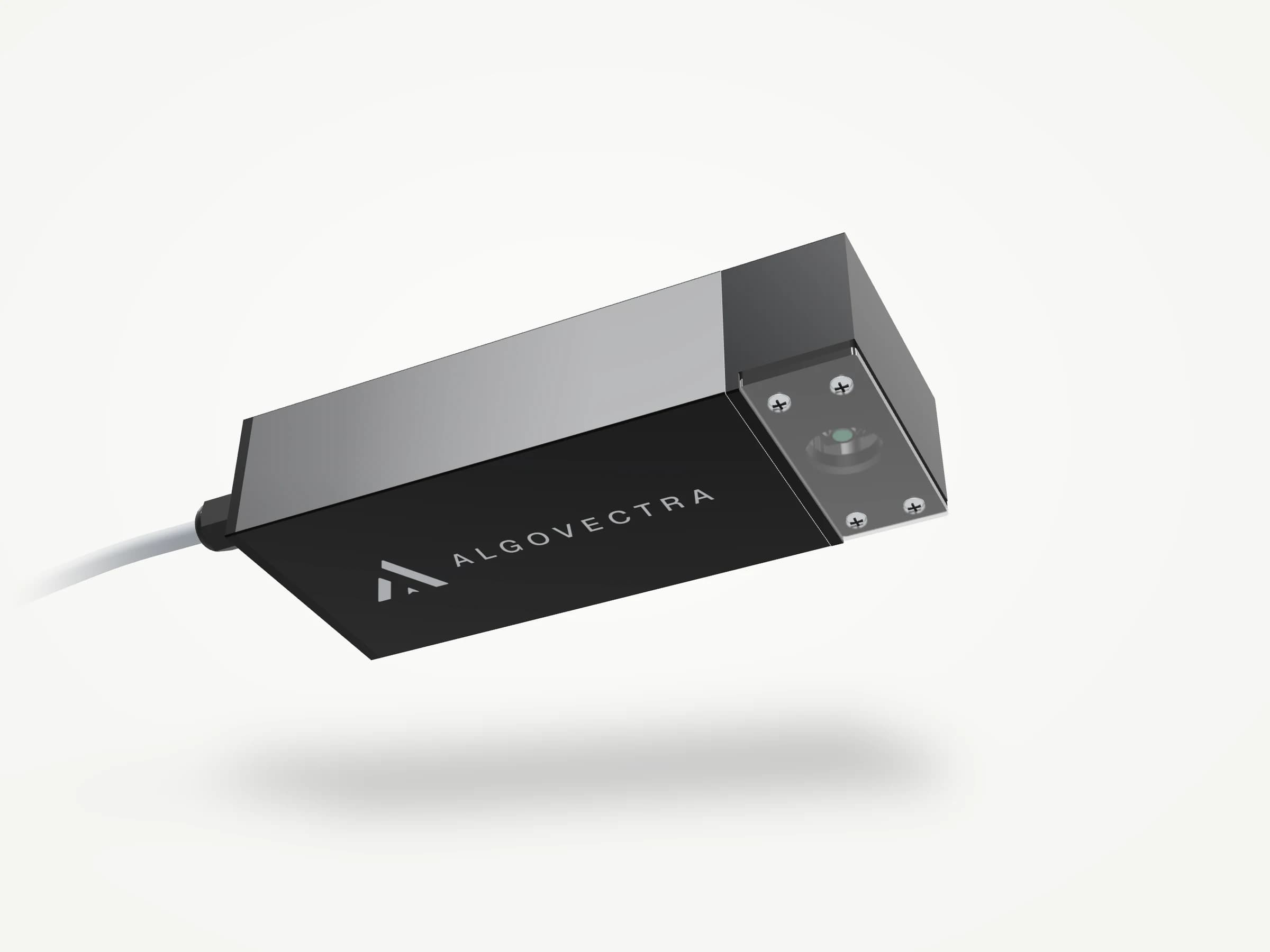

Camera for Precise Evaluation
Industrial-grade smart camera hardware built for high-throughput edge AI.
Edge Intelligence Built-in
Our custom camera systems are designed from the ground up to support demanding computer vision tasks directly at the point of capture, eliminating cloud latency and reducing bandwidth costs.
- High-quality images = more accurate evaluation

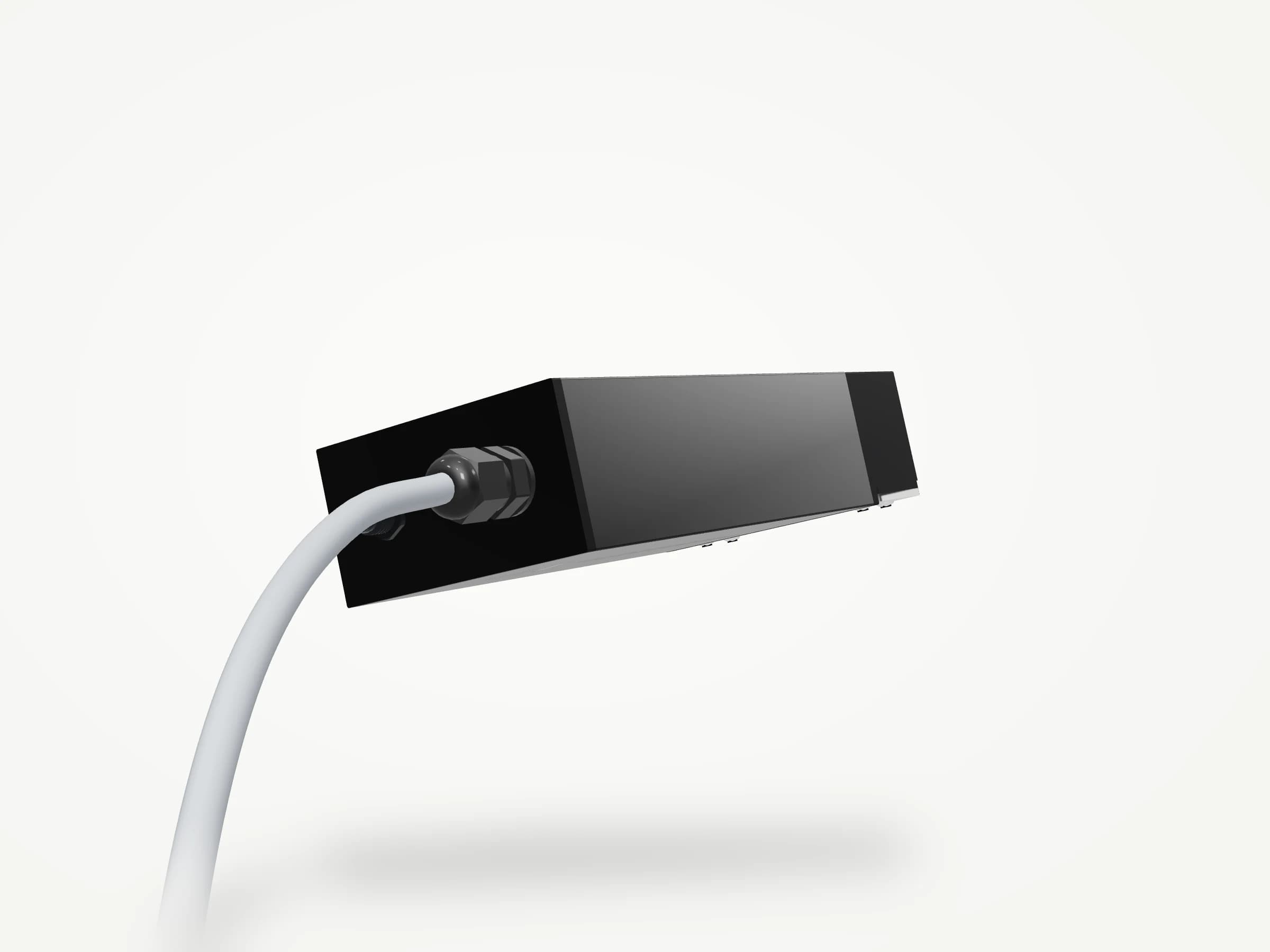

- Plug and Play branch installation = one cable
- Power over Ethernet = no extra power cable needed
- Server on the camera
- Processes trigger – takes a photo – compresses – sends for evaluation – returns result
Drag to rotate 3D model
Hardware Breakdown
Engineered for durability and ease of maintenance.

Modular Components

Compact Profile

Interchangeable Optics

Real-time Analytics
Technical Specifications
ComputeRaspberry Pi CM4 / Pi 5
Image SensorSony IMX477 (HQ Camera)
Resolution12.3 MP
Sensor Size1/2.3" (7.9 mm diagonal)
Back-IlluminatedYes (BSI)
Lens MountC/CS-mount interchangeable
Frame RateUp to 120 fps @ 1080p
Inference Latency< 80 ms (on-device)
ConnectivityPoE / Ethernet / Wi-Fi
HousingCustom IP67 enclosure
Power Draw5–12 W (PoE or DC)
Operating Temp-10 °C to +55 °C
ML StackPyTorch / TensorFlow Lite
Cloud IntegrationREST API + Webhooks
DeploymentEdge (BYOD) + Cloud dashboard
